Spezial-Kombi K2 6430/K2

Request product

Spezial-Kombi K2 6430/K2

Spezial-Kombi K2 6430/K2
Request product

Spezial-Kombi K2 6430/K2

Features

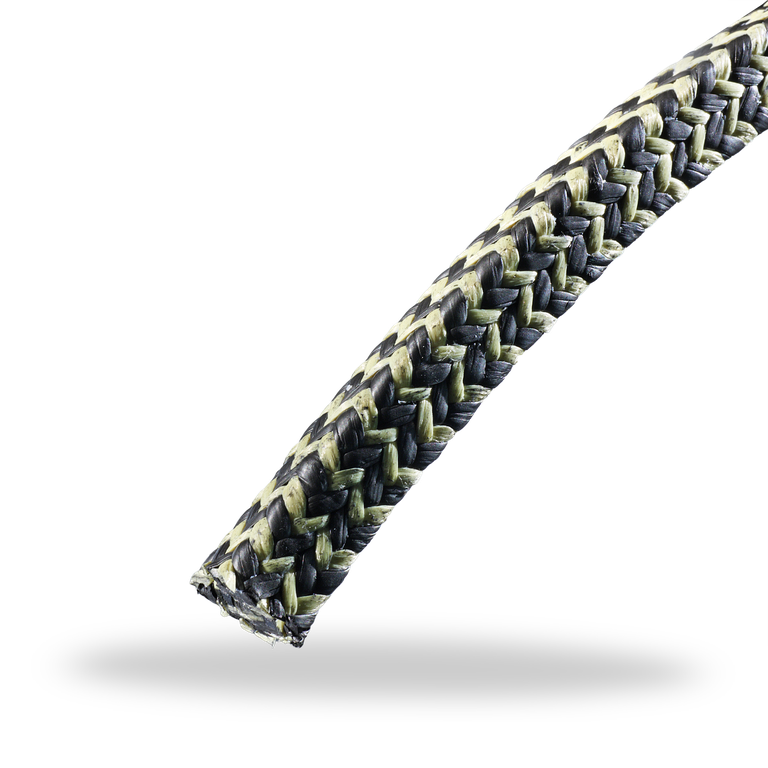

Spezial-Kombi K2 6430/K2 is a diagonally braided packing made from graphite-incorporated PTFE combined with a running surface reinforcement of endless aramid fibers (Kevlar).
The Spezial-Kombi K2 is a special packing for applications with high pressures and sliding velocities.

Advantages

  • Good sliding properties
  • Good heat conductivity
  • High strength

Operating range

Pumps
Pressure: p = 25 bar
Sliding velocity: vg = 20 m/s
Temperature
  • Continuous operation:
    t = -100 °C … +250 °C
  • Steam: tmax = +180 °C

Chemical resistance:
pH = 1 ... 13
Suitable for abrasive and sticky media.

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg

Similar products

Araflon 6426

Araflon 6426

Araflon 6426 is a packing made from high quality, smooth, synthetic and partly pre-impregnated continuous aramid fibers (Kevlar) with multiple applications of PTFE impregnating agent and lubricant additive. The aramid fibers are diagonally braided. This is a high quality and high strength packing. It is used, in particular, in the chemical, petrochemical, waste water and paper industries.

Read more

Buraflex HT 2000/HT

Buraflex HT 2000/HT

Buraflex HT 2000/HT is a packing made from expanded graphite combined with Nomex yarn corners. The Buraflex HT is a special packing for applications with high temperatures and peripheral speeds.

Read more

Buraflon 5846

Buraflon 5846

Buraflon 5846 is a diagonally braided, silicone oil-free ramie fiber packing with a light-colored special PTFE impregnating agent based on paraffin wax and oil. This special combination will prevent product contamination. The packing is preferred for use in marine applications, the brewing and drinks industry and the pharmaceutical industry. It is a flexible, maintenance-friendly and easy to adjust packing that is gentle on shaft surfaces.

Read more

Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
Back to the overview

Technical Datasheet K2 Spezial Kombi TDB 6430

PDF download - 46.4 KB
