Spiraltherm PTFE 9595
Spiraltherm PTFE 9595
Spiraltherm PTFE 9595
Features

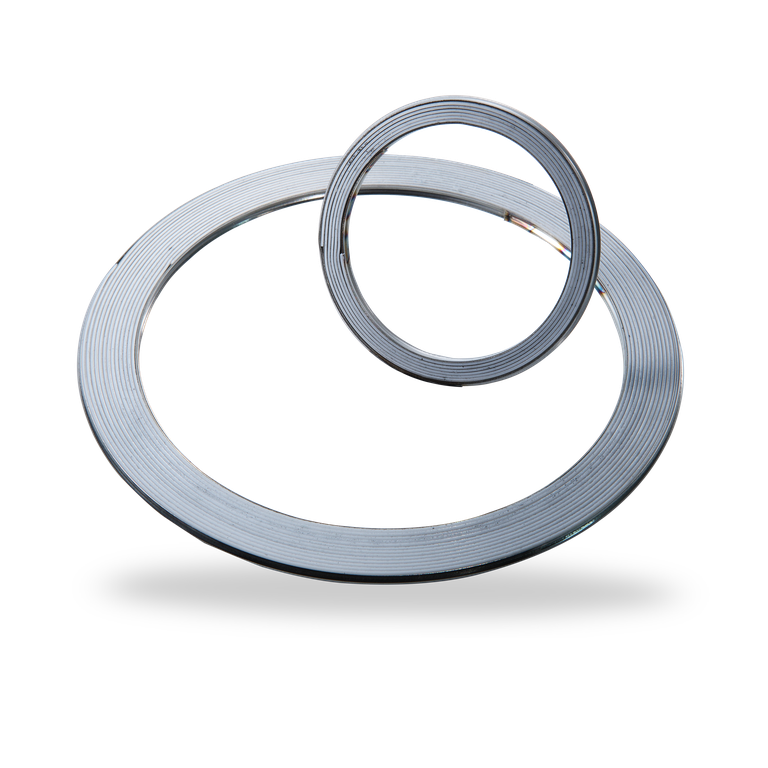

Spiraltherm PTFE 9595 is a flange seal made from a V-shaped profiled stainless steel tape with spiral-wound pure PTFE middle layer. The ends of the stainless steel tape are spot-welded.
Advantages
- High chemical resistance
- No product contamination by PTFE possible
Materials
- Filler material: pure PTFE
- Metal spiral: 1.4541 (321) or 1.4571 (316 Ti)
Standards and approvals
- FDA
Recommended applications
Industries
- Chemical industry
- Food and beverage industry
- Heat exchangers
- Covers
- Hatches
- Reactor vessels
- Process vessels
- Flange connections
- Pipe connections
Variants
9584/... (98 % pure graphite filler)
9594/... (99,85 % pure graphite filler)
9594/...R (graphite filler with low sulfur < 200 ppm and water soluble sulfate < 100 ppm cont)
9584/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9594/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9595/... (pure PTFE filler, T < 280 °C)
9596/... (mica filler, T < 900 °C)
9594/... (99,85 % pure graphite filler)
9594/...R (graphite filler with low sulfur < 200 ppm and water soluble sulfate < 100 ppm cont)
9584/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9594/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9595/... (pure PTFE filler, T < 280 °C)
9596/... (mica filler, T < 900 °C)
Forms of supply
Rings:
for tongue-and-groove flanges - 9595/NF
for projection and recess flanges - 9595/VR
for projection and recess flanges, with inner ring - 9595/VRI
for raised-face flanges, with outer ring - 9595/GA
for raised-face flanges, with inner and outer ring - 9595/GIA
for tongue-and-groove flanges - 9595/NF
for projection and recess flanges - 9595/VR
for projection and recess flanges, with inner ring - 9595/VRI
for raised-face flanges, with outer ring - 9595/GA
for raised-face flanges, with inner and outer ring - 9595/GIA
Product variants
Spiraltherm PTFE 9595/GA
Spiral wound gasket with outer guide ring.
Standard type for raised faced flanges.
Spiral wound gasket with outer guide ring.
Standard type for raised faced flanges.
Spiraltherm PTFE 9595/GIA
Spiral wound gasket with inner and outer guide ring offers the best performance in raised faced and flat flanges
The inner ring is used to
- avoid over-compression at elevated seating loads in high pressure service
- reduce turbulence within the flange area and protects against corrosion or erosion
- improve the load distribution over the gasket.
Spiral wound gasket with inner and outer guide ring offers the best performance in raised faced and flat flanges
The inner ring is used to
- avoid over-compression at elevated seating loads in high pressure service
- reduce turbulence within the flange area and protects against corrosion or erosion
- improve the load distribution over the gasket.
Spiraltherm PTFE 9595/NF
Spiral wound gasket without guide or inner ring.
This style of gasket is used in load-bearing flange configurations, such as tongue and groove flanges.
Standard dimensions according to EN/ASME.
Spiral wound gasket without guide or inner ring.
This style of gasket is used in load-bearing flange configurations, such as tongue and groove flanges.
Standard dimensions according to EN/ASME.
Spiraltherm PTFE 9595/VR
Spiral wound gasket without inner ring or outer guide ring.
Mainly used for male and female flanges or projection and recess flanges.
Spiral wound gasket without inner ring or outer guide ring.
Mainly used for male and female flanges or projection and recess flanges.
Spiraltherm PTFE 9595/VRI
Spiral wound gasket with inner ring.
Mainly used for male and female flanges or projection and recess flanges.
Spiral wound gasket with inner ring.
Mainly used for male and female flanges or projection and recess flanges.
