Statotherm Tape 6750/INC

Request product

Statotherm Tape 6750/INC

Statotherm Tape 6750/INC
Request product

Statotherm Tape 6750/INC

Features

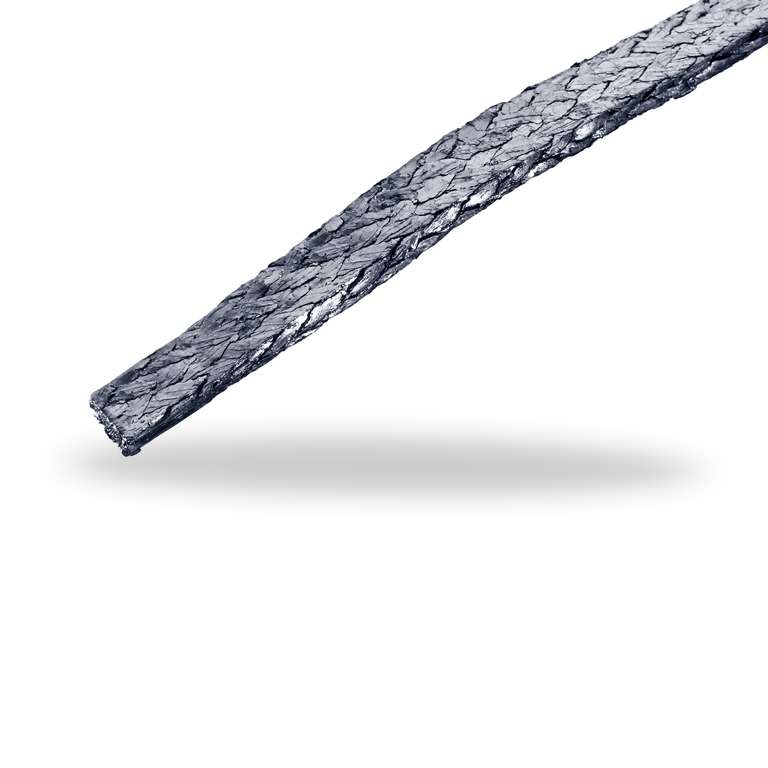

Statotherm tape 6750/INC is a braided tape made from graphite yarn reinforced with Inconel wires. It also has an adhesive backing.

Advantages

  • Does not age
  • Easy handling
  • Good resilience
  • Outstanding chemical resistance
  • High temperature stability

Operating range

Pressure
  • with retention: p = 250 bar
  • smooth raised face: p = 25 bar
  • Continuous operation:
    t = -200 °C ... +550 °C

Chemical resistance:
pH = 0 ... 14

Variants

6750/INC (braided graphite tape with reinforced Inconel® wire and adhesive backing)

Forms of supply

  • Sold by length on 2 kg rolls
  • Standard dimensions:
    (Width x Height)
    12.7 x 3.2 mm (1 kg rolls)
    25.4 x 6.4 mm
    31.8 x 6.4 mm
    38.1 x 6.4 mm

Similar products

Statotherm R profile rings R901/B..

Statotherm R profile rings R901/B..

Statotherm R profile rings R901/B are made from permanently elastic, expanded graphite (purity ≥ 99.85%, ash content ≤0.15 %, chloride content ≤20 ppm) without binders or fillers. Statotherm R profile rings R901/B are almost maintenance-free and are intended for exposure to extreme temperature cycling and/ or high or low temperature ranges which cannot be withstood by elastomeric O-rings.

Read more

Statotherm V Cover seal V881-…

Statotherm V Cover seal V881-…

Statotherm V cover seals V881 (self-sealing) consist of pure graphite rings (purity > 99%) with an embedded stainless steel reinforcement. They are used in particular in applications with large gaps and high pressures. For example, Statotherm V cover seals V881 are used successfully in power stations at high temperatures and with diameters of up to 1,000 mm.

Read more

Statotherm V Cover seal V901/…

Statotherm V Cover seal V901/…

Statotherm V cover seals V901 (self-sealing) are precision-made seals made from permanently elastic, expanded graphite (purity ≥ 99%) without binders or fillers. Cover seals are successfully used as self-sealing closures in high pressure valves, e.g. for power stations at high temperatures and up to 1,000 mm diameter.

Read more
