Features

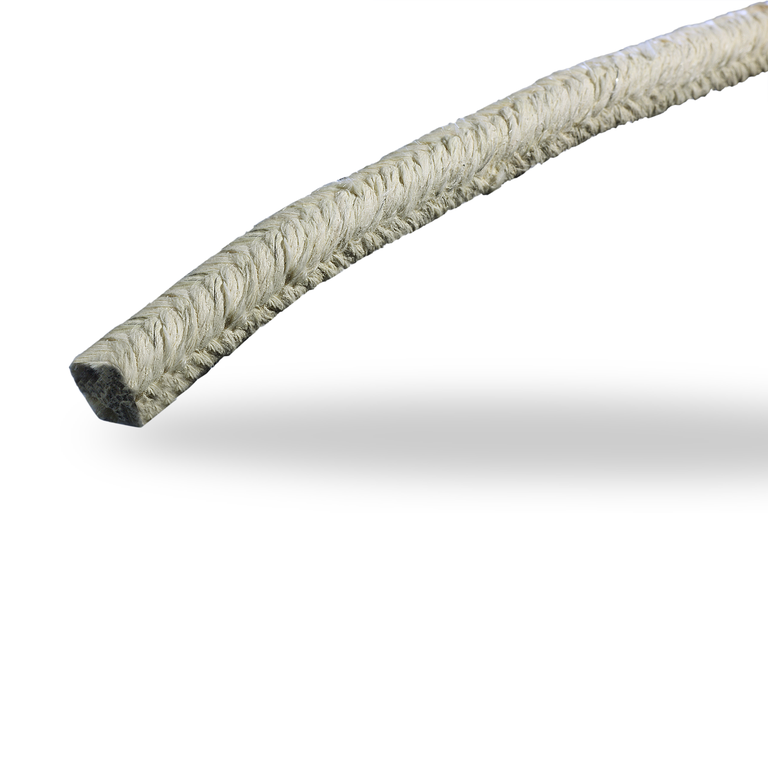

BuraGlas INC 7260/INC is a braided glass fiber packing with a core of HT glass fiber yarn with Inconel reinforcement and special impregnation. BuraGlas braided materials contain no combustible backings and so are non-flammable.

Advantages

  • Very high temperature stability

Operating range

Pressure: p = 10 bar

Temperature
  • Continuous operation:
    t = -100 °C … +750 °C
    (even in contact with air)

Chemical resistance:
pH = 5 ... 9
Resistant to water, steam, oil, neutral and dry gases.

Variants

7260ICP (with additional graphite impregnation
also available with Mica impregnation up to 800 °C

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
  • Individual dimensions available upon request
