Fire Safe packing set 9650/FS

Fire Safe packing set 9650/FS
Request product

Fire Safe packing set 9650/FS

Features

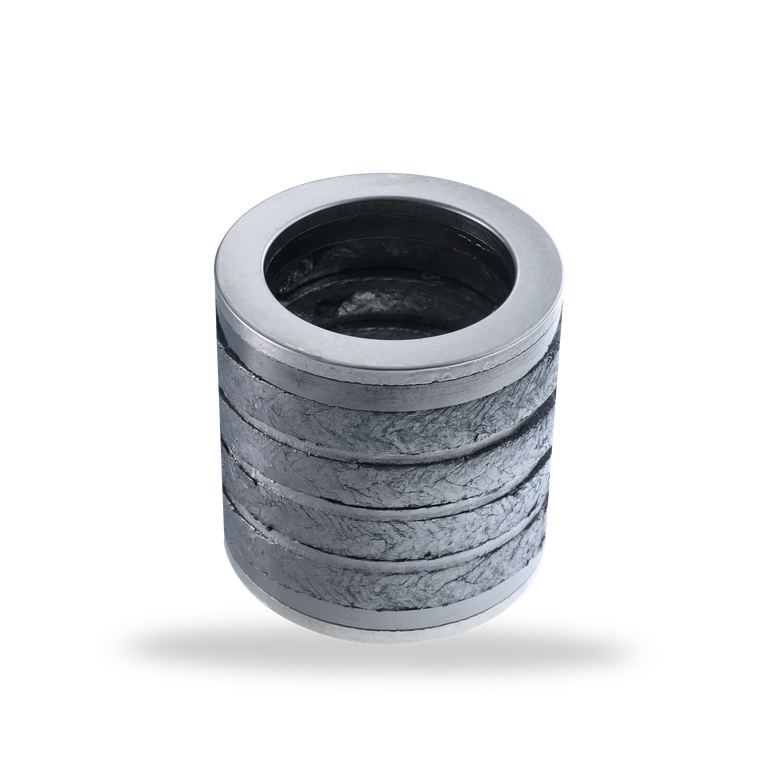

The fire-safe packing set 9650/FS is an extremely high performance set made from graphite products and stainless steel in different combinations. It is particularly for suitable for harsh conditions. It consists of the following components:
  • R901/B7K (with stainless steel cap)
  • 6050/KIN (packing)
  • 9591 (gasket 2 mm)
  • 6050/KIN (packing)
  • 9591 (gasket 2 mm)
  • 6050/KIN (packing)
  • 9591 (gasket 2 mm)
  • 6050/KIN (packing)
  • R901/B7K (with stainless steel cap)

Advantages

  • Particularly suitable for harsh conditions
  • High temperature stability

Operating range

Valves
Pressure: p = max. 260 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation, constant:
    tmax = +550 °C
  • Steam, constant:
    tmax = +550 °C
  • transient peak temperature:
    t = +600 °C
Chemical resistance: pH = 1 … 14
Resistant to almost all organic and inorganic acids, alkalis, oils and solvents.

Standards and approvals

  • ISO 10497
  • BS 6755 Pt. 2: 1987

Variants

R901/B7K (with stainless steel cap)
6050/KIN (packing)
9591 (gasket 2 mm)
6050/KIN (packing)
9591 (gasket 2 mm)
6050/KIN (packing)
9591 (gasket 2 mm)
6050/KIN (packing)
R901/B7K (with stainless steel cap)

Notes

Maximum temperature and maximum pressure must not be applied at the same time.

Forms of supply

  • Custom-made packing sets
  • Made to order

Similar products

BuraTAL 70 9650/70

BuraTAL 70 9650/70

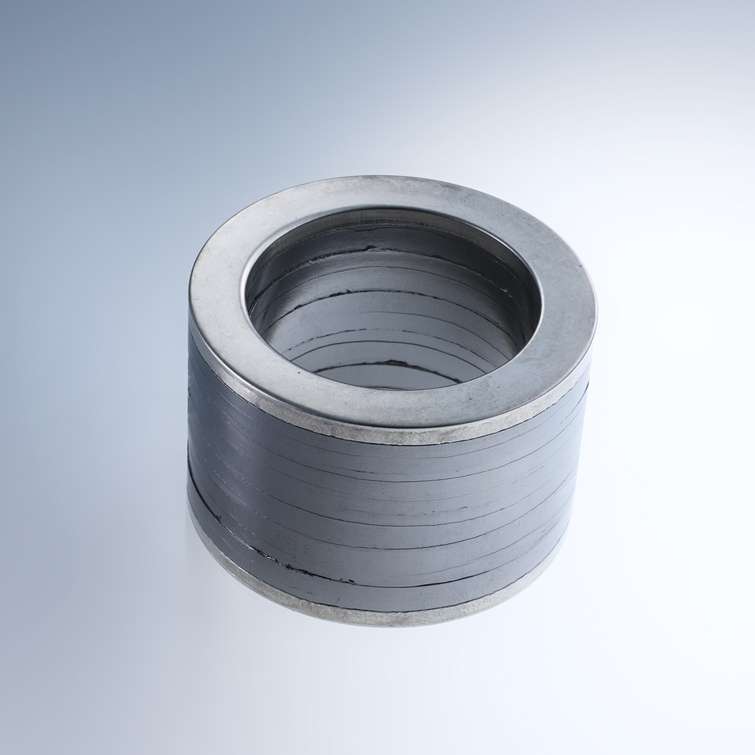

Special variation of a sealing set for valves at high temperatures. Rotatherm- high precision seals deliver optimal sealability, low diffusion and exceptional service life. Complemental to the very low wearing of the sealing faces this high temperature and high pressure sealing set is able to adjust as well gaps of the valve components. A special version (graphite rings with a thin, elastic stainless steel cap to bridge large gaps and reduce oxidation) is available for applications above 550 °C.
