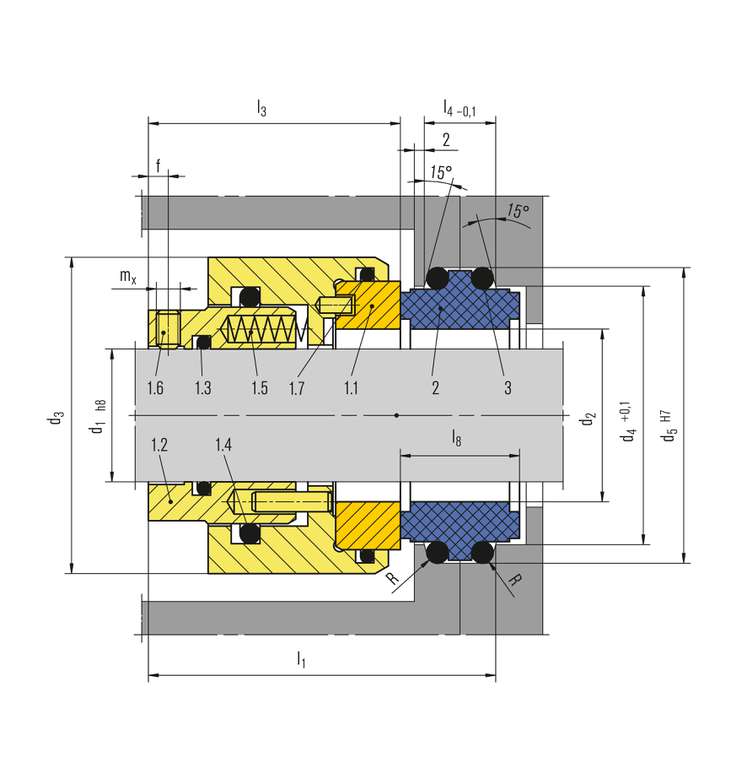

Item | Description |
1.1 | Seal face1) |
1.2 | Driver collar |
1.3 | O-Ring1) |
1.4 | O-Ring1) |
1.5 | Spring |
1.6 | Set screw |
1.7 | O-Ring1) |
2 | Stationary seat1) |
3 | O-Ring1) |
1) For disassembly of unsplit seal faces, seats and O-Ring these should be broken or cut.

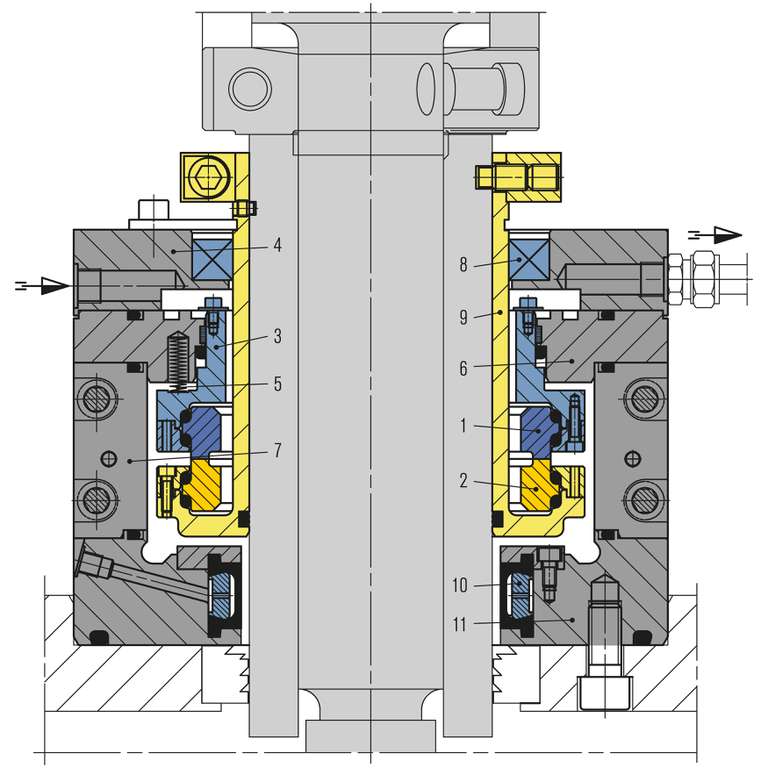

Item | Description |
1 | Seal face |
2 | Seat |
3, 4 | Adapter |
5 | Spring |
6 | Cover |
7 | Housing |
8 | Packing |
9 | Shaft sleeve |
10 | Pneumostop |
11 | Flange |

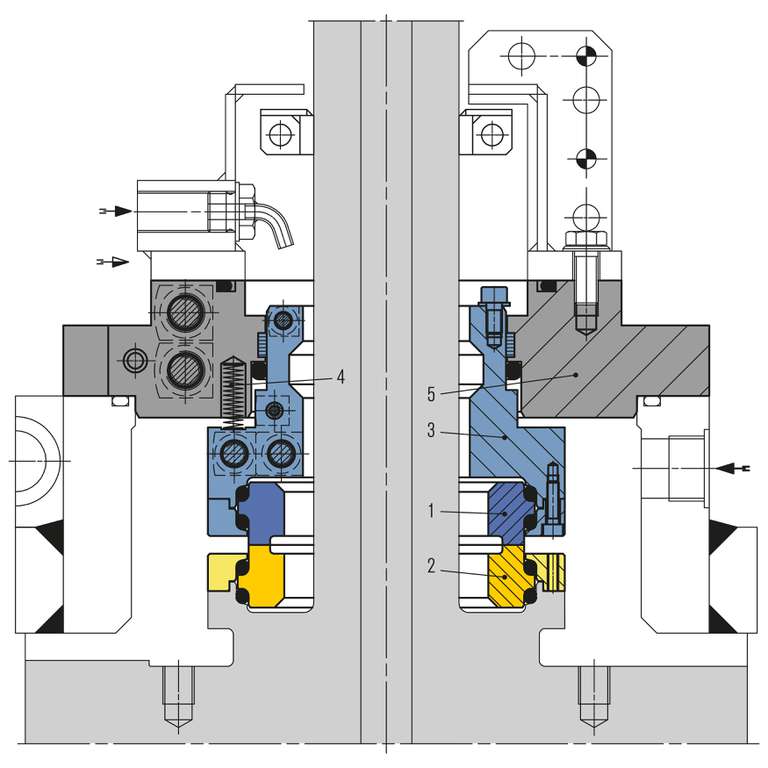

Item | Description |
1 | Seal face |
2 | Seat |
3 | Adapter |
4 | Spring |
5 | Cover |
