RoTechBooster CX
Charts

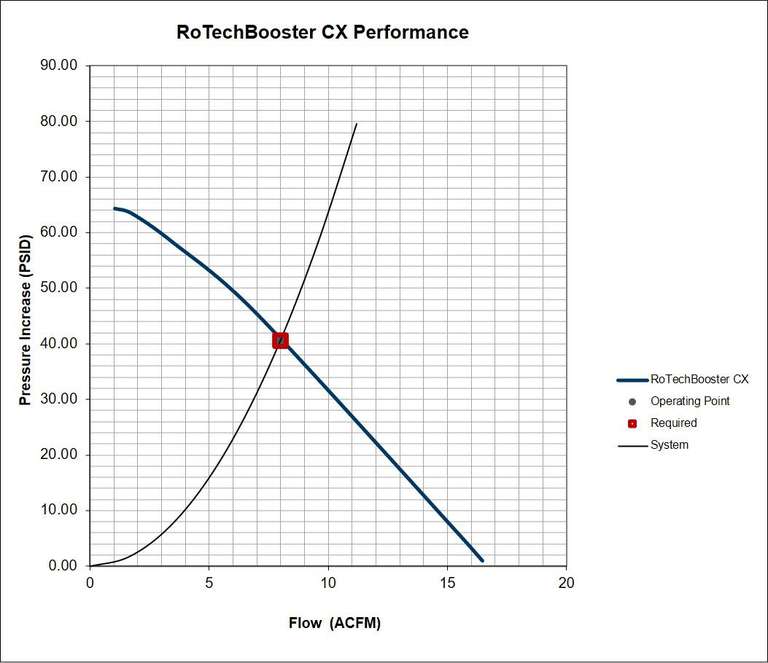

Performance diagram RoTechBooster CX
Example:
2.8 bar @ 13.5 Am3/h (40.6 psi @ 8 ACFM) and 69 bar (1000 psi) of methane
Natural gas at …68.95 bar, …25.6 °C (1000 psig, 78°F)
Gas density: ~0.8 kg/m3
Gas density at inlet pressure and temperature: 51.37 kg/m3
Required flow: 8 Am3/h
Example:
2.8 bar @ 13.5 Am3/h (40.6 psi @ 8 ACFM) and 69 bar (1000 psi) of methane
Natural gas at …68.95 bar, …25.6 °C (1000 psig, 78°F)
Gas density: ~0.8 kg/m3
Gas density at inlet pressure and temperature: 51.37 kg/m3
Required flow: 8 Am3/h
